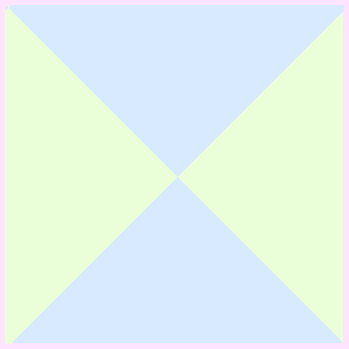

{4,4}(1,1)

Statistics

genus c1, orientable
Schläfli formula c{4,4}
V / F / E c 2 / 2 / 4
notesFaces share vertices with themselves trivial is not a polyhedral map permutes its vertices oddly
vertex, face multiplicity c4, 4
Petrie polygons
holes
2nd-order Petrie polygons
4, each with 2 edges
4, each with 2 edges
4, each with 2 edges
rotational symmetry groupC4×C2, with 8 elements
full symmetry groupD8×C2, with 16 elements
C&D number cR1.s1-1
The statistics marked c are from the published work of Professor Marston Conder.

Relations to other Regular Maps

It is self-dual.

Its Petrie dual is the 4-hosohedron.

It can be 2-fold covered to give {4,4}(2,0).
It is a 2-fold cover of {4,4}(1,0).

It can be rectified to give {4,4}(2,0).
It is the result of rectifying {4,4}(1,0).

It is the diagonalisation of {6,3}(1,1).

It can be stellated (with path <2,1;1,2>) to give S3:{8,8}4 . The density of the stellation is 6.

It is a member of series h.
It is a member of series j.
It is a member of series k.

List of regular maps in orientable genus 1.

Wireframe constructions

m  {4,4}  2/2 | 2/2 | 2 × the 2-hosohedron
t  {4,4}  2 | 4/2 | 4 × the dimonogon
td  {4,4}  4/2 | 2 | 4 × the dimonogon
w  {4,4}  2/2 | 2/2 | 2 × the 2-hosohedron
x  {4,4}  2/2 | 2/2 | 2 × the 2-hosohedron with a Dehn twist
y  {4,4}  2/2 | 2/2 | 2 × the 2-hosohedron
z  {4,4}  2/2 | 2/2 | 2 × the 2-hosohedron

Underlying Graph

Its skeleton is 4 . K2.
